MAGNETIC ARC WEAVE MOVIE
1, 2
MAGNETIC ARC WEAVE MOVIE 4

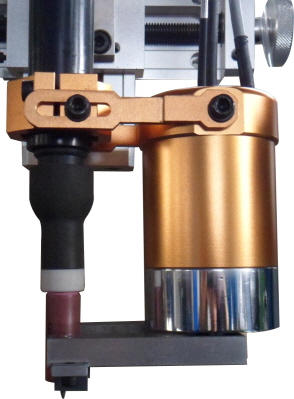

1. HTW-05-MG-(I)
(Standard (for narrow
space & just for weaving)) <Dimension>

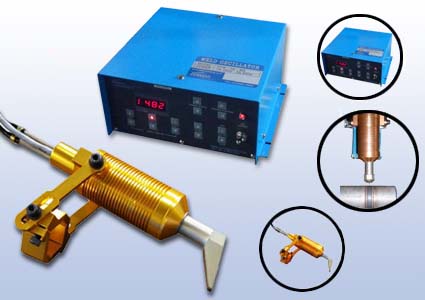

2. HTW-05-MG-(II)
(Weaving and preheating
at the front & the rear.) <Dimension>
3. HTW-05-MG-(II)-I
(Only for preheating
of the front & the rear.) <Dimension>

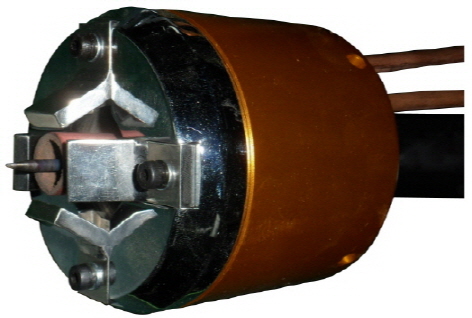

4. HTW-05-MG-(IV)
(360¢ª degree
arc-rotating weaver or heater for left to right
and
front to rear.) <Dimension>

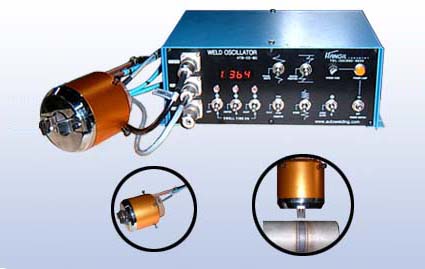

¢Ã FEATURES
- It is an ideal welding
Oscillator; no vibration.
- Arc can be weaved
by attaching the Magnetic Head on an established
torch.
- Easy control; all
the parameters in digital.
- In addition, the
Magnetic Head replacement makes it possible
to weave the Arc and pre-heat the front
to the rear. |
¢Ã
SPEC
|
Model |
HTW-05-MG(I,
II, IV) |
Input Power |
1¡Ë220V 50, 60§Ô.
1A |
Control Method |
All Digital CPU
Program |
Oscillation Speed |
0.0 ~ 500§Ô (0
~ 3000osc/min.) |
Travel Width |
Proportional
to Arc Length : 0 ~ 1:1 Max |
Center Position |
Proportional
to Arc Length : 0 ~ 1:1 Max |
Dwell Time |
Left |
0.0 ~ 2.0 sec
(unit:0.1sec) |
Center |
Right |
Down Slope Time |
0.0 ~ 9.9sec
(unit:0.1sec) |
Oscillation Head
Water Cooling Type
(Water cooling 3§¤/min,
3§¸/§²) |
MG-1 |
300 Gauss/Max. |
MG-2 |
300 Gauss/Max. |
We have the unit
for weaving & preheating
of the front & the rear. |
MG-4 |
600 Gauss/Max. |
Applicable Process |
GTAW, PAW, SAW,
SPAY TYPE GMAW |
|
* Note : The above mentioned
specification may be changed for better
function
without
any warning |
|
