¢Ã FEATURES

 - Han Gil is a professional manufacturer of Plasma Transferred Arc process and the PTA-related torch.

 - You can pick up the torch according to the applications.

 - Our PTA torch has a top quality and a good durability.





¡ã HPT-300-A (AUTO TORCH)



¡ã HPT-200-A (AUTO TORCH)

¡ã HPT-120-MA (MANUAL TORCH)

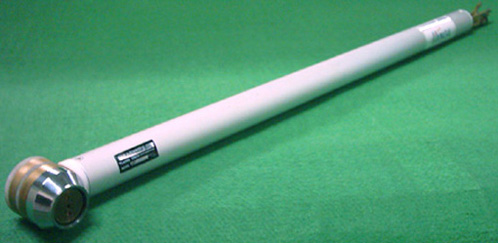

¡ã HPT-120-IA (INTERNAL TORCH)

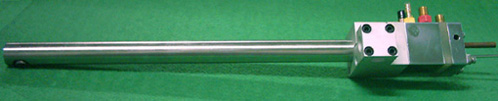

¡ã HPT-80-IA (INTERNAL TORCH)

¢Ã SPEC


Model No.

HPT-80-IA

HPT-120-IA

HPT-120-MA

Rated current(A)

80

120

120

Rated duty cycle(%)

80A, 60%

120A, 60%

120A, 60%

Powder Deposition rate
Max (§¸/h)

1.5

2

2

Chilling water flow rate
(§¤/min, 6kg/§²)

1.5

1.5

1.5

Gun Type

35mm internal

90mm internal

Manual

Weight(§¸)

3

4

1.5


Model No.

HPT-200-A

HPT-300-A



Rated current(A)

200

300



Rated duty cycle(%)

200A, 100%

300A, 80%



Powder Deposition rate
Max (§¸/h)

4

5



Chilling water flow rate
(§¤/min, 6kg/§²)

3

4



Gun Type

auto

auto



Weight(§¸)

3

4




* Note : The above mentioned specification may be changed for better function
           without any warning
