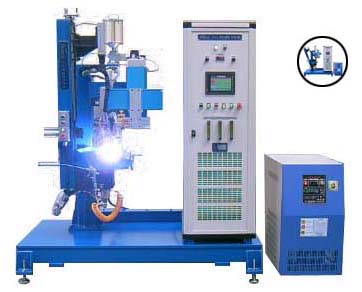

¢Ã FEATURES
- Digital NC system.
- The P.T.A system is for the marine
engine valve only, being suitable for surfacing the
medium size valves.
- All the process is automatically
operated, except for the loading of the work-piece and
the unloading.
¢Ã SPEC
MODEL |
HPT-300-AA |
INPUT POWER |
3¨ª 220V, 50/60Hz, 30KVA |
WELDING CURRENT |
PILOT : 50A (100%) |
MAIN : 300A (100%) |
PPW TORCH |
HPT - 300 - A |
POWDER HOPPER |
HGPF - 300 - L |
VALVE SPECIFICATION |
1)
HEAD DIA : ¨ª60~110mm
2) STEM
DIA: ¨ª14~30mm
3)
STEM LENGTH : 350~650mm
4) WEIGHT : 6Kg/MAX |
CONTROL SYSTEM |
DIGITAL NC SERVO MOTOR CONTROL |
LOADING & UNLOADING |
AUTO |

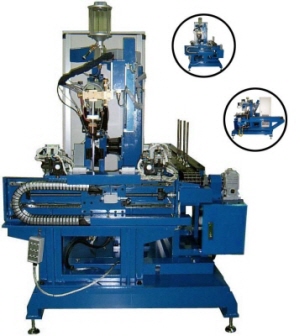

¢Ã FEATURES
- Full digital NC system.
- The unit is for multipurpose,
applying to industrial valve seat, seat ring and disc
as well as the marine engine valve.
- Oscillator is also equipped for
a side bead.
¢Ã
SPEC
MODEL |
HPT-300-SAV |
INPUT POWER |
3¨ª 220V, 50/60Hz, 35KVA |
WELDING CURRENT |
PILOT : 50A (100%) |
MAIN : 300A (100%) |
PPW TORCH |
HPT - 300 - A |
POWDER HOPPER |
HGPF - 300 - L |
POSITIONER |
250Kg(0.1~1.5 RPM)
TILTING : 0~45¢ª |
STROKE |
X : 400mm / Y : 400mm |
OSCILLATOR |
USED FOR X AXIS |
CONTROL SYSTEM |
DIGITAL NC SERVO MOTOR CONTROL |
VALVE SPECIFICATION |
1) HEAD DIA :
¨ª60~250mm
2) STEM DIA: ¨ª14~50mm
3)
STEM LENGTH : 350~1100mm |
LOADING & UNLOADING |
MAN |

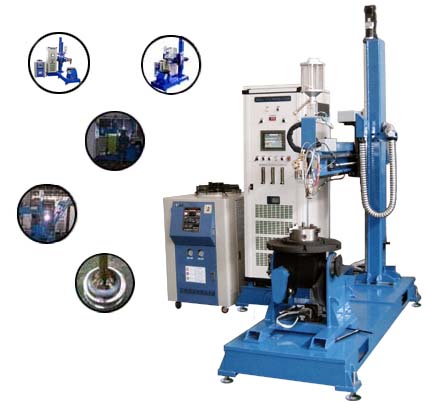

¢Ã FEATURES
- It is also operated with a complete
digital NC system.
- The P.T.A is manufactured
as buyer specification, being operated automatically,
except for the loading and unloading to be done by hand.
- The Oscillator is basically equipped
to work on a wide bead surfacing.
¢Ã SPEC
MODEL |
HPT-300-SM |
INPUT POWER |
3¨ª 220V, 50/60Hz, 35KVA |
WELDING CURRENT |
PILOT : 70A (100%) |
MAIN : 300A (100%) |
PPW TORCH |
HPT - 300 - A |
POWDER HOPPER |
HGPF - 300 - L |
POSITIONER |
350, 500, 750, 1000, 1500Kg
(OPTION)
TILTING : 35¢ª(-90+45¢ª) |
STROKE |
X : 1500mm / Y : 1500mm (OPTION) |
OSCILLATOR |
HTW-05-100-SV |
CONTROL SYSTEM |
DIGITAL NC SERVO MOTOR CONTROL |
VALVE SPECIFICATION |
Applying to industrial
valve seat, seat ring and disc as well as
the marine engine valve. |
LOADING & UNLOADING |
MAN |
|
