¢Ã Features

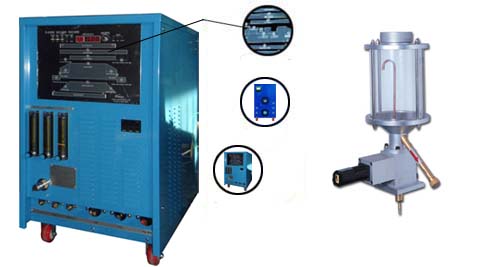

- P.T.A. welding machine, HPAW-300AW, is fully controlled in digital.
- It is easy to operate with graphic typed panel mode.
- 100 welding model can be set and call out for repeat welding.
¢Ã SPEC
MODEL |
HPAW-200AW |
HPAW-300AW |
HPAW-500AW |
|||||||||||||||
Welding parameter setting |
100 |
|||||||||||||||||
Input voltage |
3¨ª, 220V, 50/60Hz |
|||||||||||||||||
Rate current (KVA) |
20 |
27 |
45 |
|||||||||||||||
Rate output current (A) |
200 |
300 |
500 |
|||||||||||||||
Duty cycle (%) |
200A, 100% |
300A, 80% |
500A, 60% |
|||||||||||||||
Welding current (A) |
5 ~ 200 |
5 ~ 300 |
5 ~ 500 |
|||||||||||||||
Pilot current (A) |
10 ~ 50 |
|||||||||||||||||
Up slope current ) (A) |
5 ~ 200 |
5 ~ 300 |
5 ~ 500 |
|||||||||||||||
Down slope current (A) |
200 ~ 5 |
300 ~ 5 |
500 ~ 5 |
|||||||||||||||
Up/Down slope (sec) |
0.1 ~999.9 |
|||||||||||||||||
Powder feed rate (g/min) |
0 ~ 100 |
|||||||||||||||||
(Powder up slope time (sec) |
0 ~ 999.9 |
|||||||||||||||||
Powder down slope time (sec) |
0 ~ 999.9 |
|||||||||||||||||
Pilot gas (§¤/min, 3Kg/§²) |
0.3 ~ 3.0 |
0.3 ~ 3.0 |
0.5 ~ 5.0 |
|||||||||||||||
Shielding gas (§¤/min, 3Kg/§²) |
2.0 ~ 20 |
|||||||||||||||||
Powder gas (§¤/min, 3Kg/§²) |
0.5 ~ 5.0 |
|||||||||||||||||
Size (H*W*L) |
900¡¿440¡¿650 |
|||||||||||||||||
Weight (Kg) |
45 |
45 |
60 |
|||||||||||||||
Features
1. Various Sensors are working under the programs: Sensor for Gas pressure, sensor for chilling water flow, sensor for Chiller's overheating prevention. 2. Welding models can be set up to 100 3. Interface is available for operation with other equipments |
||||||||||||||||||
|
||||||||||||||||||
Option
1. Chiller |
||||||||||||||||||
¡Ø Note : The above mentioned specification may be changed
for better function without any warning
