HAN-GIL's SEAM TRACKER is

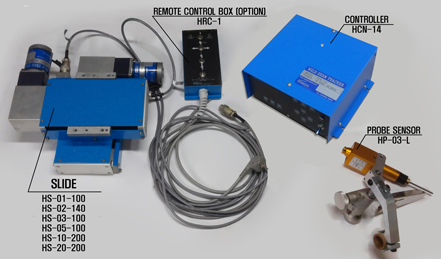

- The Seam Tracker
is consist of a precision Sensor, Controller
and Slide. The sensor does probe the
weld seam and the Controller does contorl
the change valve on the work-piece.
- The welding torch
is guided rapidly and exactly by moving
the Slides.
- The Seam Tracker
can calibrate the error occurred by the
work-piece deformed itself and the welding
heat.
- There is a stop function
to prevent the deviation of the Sensor from
a thin work-piece. So, the welding defect
can be avoided. (OPTION)
- The Seam Tracker
can be compatibly used with other automatic
system or unmanned system.
- All the controlling
is done in digital and program, so the unit
does show the good performance in the tough
environments.
¢Ã
The FEATURES of HAN-GIL's SEAM TRACKER
-
The Seam Tracker has the function for sensing
the tag welding.
(OPTION) (The function can work over
800mm/min in the weld travel speed.)
-
A uniformed welding bead is produced.
-
There is the function to make weld-end timing programmed
because the tracker can sense the edge of
work-piece.
(OPTION)
-
There are several priority functions as
well as the reverse tracking. (OPTION)
-
The tracker has the right/left reverse function
for easy installation.
-
The tracker has the function to prevent
the deviation of the sensor from the welding
seam (OPTION). If
the deviation occurs on the seam the tracker
stops automatically.
(OPTION)
-
The tracker can work on the other semi or
full automatic system. (OPTION)
-
All the functions are programmed for easy
control.
¢Ã
STANDARD SPECIFICATION
 STANDARD
SPECIFICATION 01~03
FORM
SPEC |
HMG - 01 |
HMG - 02 |
HMG - 03 |
RATED LOADING
CAPACITY |
5Kgf |
10Kgf |
15Kgf |
TRACKING RANGE |
X,Y EACH 100mm |
X,Y EACH 100mm |
X,Y EACH 100
mm |
TRACKING SPEED |
100mm/min |
100mm/min |
150mm/min |
ACCURACY |
¡¾0.25mm |
¡¾0.25mm |
¡¾0.25mm |
ALLOWABLE MOMENT |
70Kg-cm |
180Kg-cm |
300Kg-cm |
APPLICATION WELDING |
GTAW |
GTAW |
GMAW |
Component |
Control Box |
HCN-14 (1) |
SLIDE |
HS-01-100 (2) |
HS-02-140 (2) |
HS-03-100 (2) |
ProbeSensor |
HP-03-L (1) |
SensorAdjust |
THL/HTR (1) |
CABLE |
HSC-05 (1) |
FUNCTION OF CONTROL |
MANUAL |
UP, DOWN, LEFT,
AND RIGHT MOVEMENT,
PULL-UP MOVEMENT
|
AUTOMATIC |
RIGHT/BOTH/LEFT,
PULL-UP,
REMOTE CONTROL
FUNCTION, OK-OUT DETECTION,
EM-OUT, FORCED
DIFFERENCE,
FORCED STOP FUNCTION
OF THE DETECTION,
REVERSE FUNCTION,
LEFT/ RIGHT,
TACK DETECTION(OPTION),
END-DETECTION
1, 2(OPTION),
TORCH IS COMPULSORILY
TRACKED OUT(OPTION), |
INPUT POWER |
AC110/220V,1
¨ª, 60Hz, 2A |
OPTION |
REMOTE CONTROL
(HRC-1),
TORCH ADJUST
(HTA-05,10),
(HUD-05), TWIN
LIFTER (HWUD-05),
M/C OUT CONNECTOR,
REMOTE CONNECTOR
TACK WELD SENSING
FUNCTION
SENSOR FORCED
SEPARATE FUNCTION
END-PART(I) SENSING
FUNCTION
END-PART(II)
SENSING FUNCTION |
STANDARD
SPECIFICATION 05~20
FORM
SPEC |
HMG - 05 |
HMG - 10 |
HMG - 20 |
HMG - 40 |
RATED LOADING
CAPACITY |
25Kgf |
50Kgf |
100Kgf |
200Kgf |
TRACKING RANGE
|
X,Y EACH 100mm |
X,Y EACH 200mm |
X,Y EACH 200
mm |
X,Y EACH 200
mm |
TRACKING SPEED
|
250mm/min |
250mm/min |
170mm/min |
145mm/min |
ACCURACY |
¡¾0.25mm |
¡¾0.25mm |
¡¾0.35mm |
¡¾0.5mm |
ALLOWABLE MOMENT
|
700Kg-cm |
1,400Kg-cm |
3,700Kg-cm |
8,500Kg-cm |
Component |
Control Box |
HCN-14 (1) |
SLIDE |
HS-05-100 (2) |
HS-10-200 (2) |
HS-20-200 (2) |
HS-40-200 (2) |
ProbeSensor |
HP-03-L (1) |
SensorAdjust |
THL/HTR (1) |
CABLE |
HSC-05 (1) |
APPLICATION WELDING
|
GMAW |
SUBMERGED |
SUBMERGED TANDEM |
SUBMERGED TANDEM |
FUNCTION OF
CONTROL |
MANUAL |
UP, DOWN, LEFT,
AND RIGHT MOVEMENT,
PULL-UP MOVEMENT |
AUTOMATIC |
RIGHT/BOTH/LEFT,
PULL-UP,
REMOTE CONTROL
FUNCTION, OK-OUT DETECTION,
EM-OUT, FORCED
DIFFERENCE,
FORCED STOP FUNCTION
OF THE DETECTION,
REVERSE FUNCTION,
LEFT/ RIGHT,
TACK DETECTION(OPTION),
END-DETECTION
1, 2(OPTION),
TORCH IS COMPULSORILY
TRACKED OUT(OPTION) |
INPUT POWER |
AC110/220V,1
¨ª, 60Hz, 2A |
OPTION |
REMOTE CONTROL
(HRC-1),
TORCH ADJUST
(HTA-05,10),
(HUD-05), TWIN
LIFTER (HWUD-05),
M/C OUT CONNECTOR,
REMOTE CONNECTOR
TACK WELD SENSING
FUNCTION
SENSOR FORCED
SEPARATE FUNCTION
END-PART(I) SENSING
FUNCTION
END-PART(II)
SENSING FUNCTION |
|
