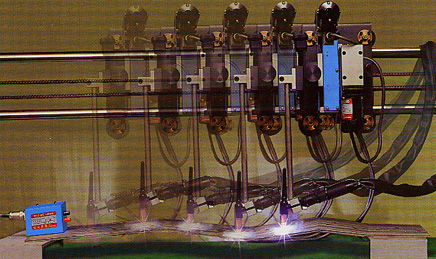

▣ FEATURES	▣ PROCESS OF MOVING
The customer does get the fine welding with Arc height control of Hangil, which keeps the Arc's distance between work-piece and torch by monitoring the change in ARC voltage with Arc sensor. - The ARC-VOLTAGE CONTROL(A.V.C) can be applicable to process, such as GTAW, plasma welding, plasma cutting by replacing the sensor without any additional device. - The ARC-VOLTAGE CONTROL(A.V.C) has interface for automation or unmanned systems to the other equipments.

< HAC-01-A >	< HAC-01-A-1 >

※ Dimension Download ※

▣ SPEC

MODEL	HAC - 01 - A	HAC - 01 - A - 1M
WELDING DATA MEMORY	-	10 MODEL
TYPE	ANALOG	DIGITAL
HEIGHT SETTING	INPUT ARC VOLTAGE	AVERAGE, AUTO, ANALOG
DEVIATION SETTING	±0.3V ~ 1.0V (PACT ± 3 ~ 10V)	AVC: ± 0.05 ∼2.55V (PACT ± 0.5 ~ 25V)
INPUT DATA	POTENTION METER SETTING	DIGITAL NUMBER
AUTO/MANUAL FUNCTION	YES	YES
REMOTE START/STOP	YES	YES
START DELAY	NO	YES
STICK-OUT	NO	YES
SLIDE STROKE	100mm
MOMENT	70Kg-cm
SPEED	100mm/min
APPLICATION WELDING	GTAW, PAW, PACT (DC)
INPUT POWER	1Ø, 110/220V, 50/60Hz, 2A
* Note : The above mentioned specification may be changed for better function without any warning
