FEATURES

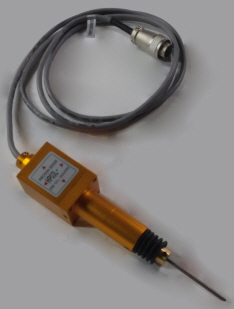

- The SENSOR of touch
type does probe the seam conditions and
send the sensed signals out to the Control
Unit.
- The operator can
get a good quality of welding under the
worse seam conditions, because, at the same
time, the SENSOR can probe all the directions;
up, down, left, right and the edge of work-piece.
- The SENSOR can work
perfectly on cornered fillet, grooved butt,
1.2mm thickness of lap welding.
¢Ã SPEC
MODEL |
HP - 03 |
ACCURACY |
¡¾0.25mm |
APPLICATION WELDING
|
TIG, MIG , SUBMERGED
|
WEIGHT |
520g |
* Note
: The above mentioned specification may
be changed for better function
without
any warning
|

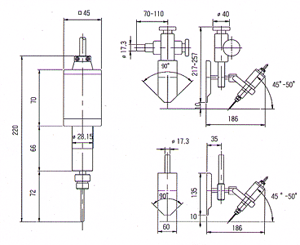

INSTALLATION
