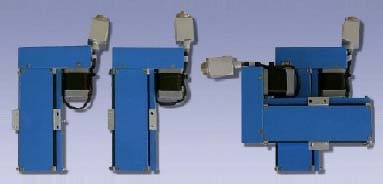

¡¶ HS 05-100 , HS 10-200, HS 20-200¡·
|
|
< click
dimension > |
¡¶ HS 01-100 , HS 02-140,
HS 03-100¡·
|
 |
¢Ã
FEATURES
- The unit is manufactured
with precise DC motor and ball screw so
it does respond correctly to minute change.
- The body of the slide
is cast into AL alloys for reduction of
the weight.
¢Ã SPEC
MODEL |
LOADING CAPACITY |
STROKE |
SPEED |
MOMENT |
WEIGHT |
HS01-100 |
5kgf |
100mm |
100mm/min |
70kg-cm |
3.6Kg |
HS02-140 |
10kgf |
140mm |
150mm/min |
180kg-cm |
6Kg |
HS03-100 |
15kgf |
100mm |
150mm/min |
300kg-cm |
8Kg |
HS05-100 |
25Kgf |
100mm |
250mm/min |
700Kg-cm |
12Kg |
HS10-200 |
50Kgf |
200mm |
250mm/min |
1,400Kg-cm |
22Kg |
HS20-200 |
100Kgf |
200mm |
170mm/min |
3,700Kg-cm |
48Kg |
HS40-200 |
200Kgf |
200mm |
145mm/min |
8,500Kg-cm |
50Kg |
* Note
: The above mentioned specification may
be changed for better function
without
any warning
|
|
