¡Ø Dimension Download
¡Ø |
|
|
|
|

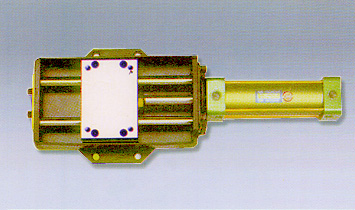

¢Ã FEATURES
This is device which
moves the torch up and down
In the case of loading
and unloading work peace, it prevents the interference
of TORCH and SENSOR.
|
|
<

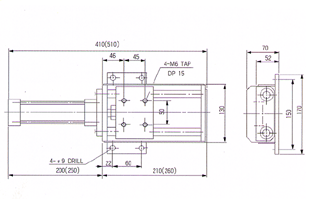

click dimension >
|
¢Ã SPEC |
MODEL |
HUD-05 |
LOADING
CAPACITY |
20 Kgf |
STROKE
|
100(150)mm |
MOMENT
|
500Kg- cm |
WEIGHT
|
5.3 Kg |
|
|
* Note : The above mentioned specification may be changed
for better function
without
any warning
|
¡Ø Dimension Download
¡Ø |
|
|
|

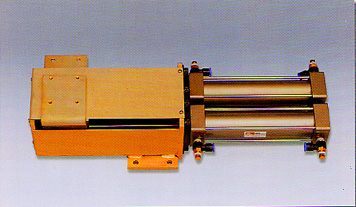

¢Ã FEATURES
2ea units which can
move TORCH and SENSOR up and down individually are
integrated.
In the case of welding
at the end of welding objective, it can be welded
perfectly in the skipped range which in caused
by the interference of SENSOR.
|
|
<
click dimension >
|
¢Ã
SPEC
|
MODEL |
HWUD-05 |
LOADING
CAPACITY |
20 Kgf |
STROKE
|
100(150)mm |
MOMENT
|
500Kg- cm |
WEIGHT
|
10 Kg |
|
|
* Note : The above mentioned specification may be changed
for better function
without
any warning
|
|
|
