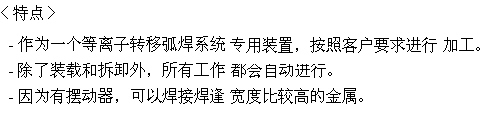

MODEL

HPT-300-AA

INPUT POWER

3¨ª 220V, 50/60Hz, 30KVA

WELDING CURRENT

PILOT : 50A (100%)

MAIN : 300A (100%)

PPW TORCH

HPT - 300 - A

POWDER HOPPER

HGPF - 300 - L

VALVE SPECIFICATION

     1) HEAD DIA : ¨ª60~110mm

   2) STEM DIA: ¨ª14~30mm

       3) STEM LENGTH : 350~650mm

4) WEIGHT : 6Kg/MAX

CONTROL SYSTEM

DIGITAL NC SERVO MOTOR CONTROL

LOADING & UNLOADING

AUTO

MODEL

HPT-300-SAV

INPUT POWER

3¨ª 220V, 50/60Hz, 35KVA

WELDING CURRENT

PILOT : 50A (100%)

MAIN : 300A (100%)

PPW TORCH

HPT - 300 - A

POWDER HOPPER

HGPF - 300 - L

POSITIONER

250Kg(0.1~1.5 RPM)

TILTING : 0~45¢ª

STROKE

X : 400mm / Y : 400mm

OSCILLATOR

USED FOR X AXIS

CONTROL SYSTEM

DIGITAL NC SERVO MOTOR CONTROL

VALVE SPECIFICATION

  1) HEAD DIA : ¨ª60~250mm

2) STEM DIA: ¨ª14~50mm

    3) STEM LENGTH : 350~1100mm

LOADING & UNLOADING

MAN

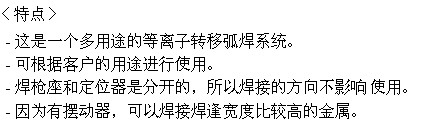

MODEL

HPT-300-SM

INPUT POWER

3¨ª 220V, 50/60Hz, 35KVA

WELDING CURRENT

PILOT : 70A (100%)

MAIN : 300A (100%)

PPW TORCH

HPT - 300 - A

POWDER HOPPER

HGPF - 300 - L

POSITIONER

350, 500, 750, 1000, 1500Kg (OPTION)

TILTING : 35¢ª(-90+45¢ª)

STROKE

X : 1500mm / Y : 1500mm (OPTION)

OSCILLATOR

HTW-05-100-SV

CONTROL SYSTEM

DIGITAL NC SERVO MOTOR CONTROL

VALVE SPECIFICATION

Applying to industrial valve seat, seat ring and disc as well as the marine engine valve.

LOADING & UNLOADING

MAN
